màn hình LCD đơn sắc
Created with Pixso.

Voltage Supply 5V STN Blue Yellow-Green LCD Screen Module I2C/IIC 4pin PCB 2004 LCD Screen 16x2 Character LCD Display 20x4

Voltage Supply 5V STN Blue Yellow-Green LCD Screen Module I2C/IIC 4pin PCB 2004 LCD Screen 16x2 Character LCD Display 20x4

Tên thương hiệu: Genyu
MOQ: 100 mảnh
giá bán: $3/pieces 100-4999 pieces
Thông tin chi tiết
Nguồn gốc:
Quảng Đông, Trung Quốc
Kiểu:
Tính cách
Kích thước hiển thị:
Tiêu chuẩn
Loại điều khiển:
/
Giao diện:
/, IIC/I2C, Giao diện song song
Chế độ hiển thị:
/
Nhiệt độ hoạt động:
/
Điện áp - Cung cấp:
/
Nhìn xung quanh:
/
Kích thước nhân vật:
/
Số lượng ký tự:
/
Đèn nền:
/
Định dạng ký tự:
/
Màu văn bản:
/
Kiểu lắp:
/
Tên sản phẩm:
Màn hình LCD ký tự
Loại hiển thị:
STN, FSTN
Nghị quyết:
16x1, 16x2, 16x4, 20x4, 128x64, v.v.
Phương pháp lái xe:
Nhiệm vụ 1/16, Độ lệch 1/5
Điện áp hoạt động:
3,3V/5,0V
Góc nhìn:
6 giờ
màu đèn nền:
Trắng / Ô liu / Cam, v.v.
Kích thước mô -đun:
98x60x13,8 mm
Khu vực hoạt động:
70,48x20,80 mm
Làm nổi bật:

Yellow-Green LCD Screen

,

4pin PCB 2004 LCD Screen

,

2004 LCD Screen

Mô tả sản phẩm

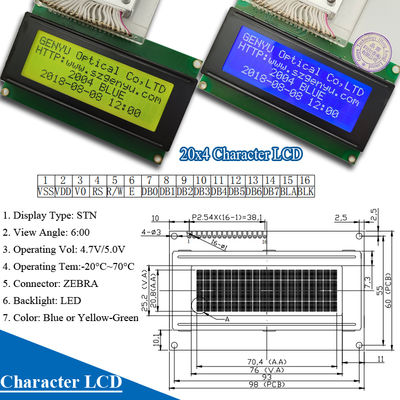

5V STN Blue Yellow-Green LCD Module 2004 LCD Screen 16x2 Display Character LCD

Voltage Supply 5V STN Blue Yellow-Green LCD Screen Module I2C/IIC 4pin PCB 2004 LCD Screen 16x2 Character LCD Display 20x4 0

Voltage Supply 5V STN Blue Yellow-Green LCD Screen Module I2C/IIC 4pin PCB 2004 LCD Screen 16x2 Character LCD Display 20x4 1

Voltage Supply 5V STN Blue Yellow-Green LCD Screen Module I2C/IIC 4pin PCB 2004 LCD Screen 16x2 Character LCD Display 20x4 2

Product Description



Regular size, standing stock.

(1) Display Type : STN/ Blue /Gray/Yellow green

(2) Display Mode : 20 character x 4 16line or 20 character x 2 line

(3) Display Color : White LED
(4) Driving Method : 1/16 Duty, 1/5 Bias
(5) Pin : 16 pin
(6) Interface : 4-bits or 8-bits interface

(7) Viewing Angle : 6 O'clock

(8)  Operating Temperature: -20~70 °C





Want more ?

We can customize the size, color, backlight, driver IC, connection mode ...

Please tell us your request, can be customized.

Contact us , my friend, just click here!



 Voltage Supply 5V STN Blue Yellow-Green LCD Screen Module I2C/IIC 4pin PCB 2004 LCD Screen 16x2 Character LCD Display 20x4 3

Voltage Supply 5V STN Blue Yellow-Green LCD Screen Module I2C/IIC 4pin PCB 2004 LCD Screen 16x2 Character LCD Display 20x4 4

Voltage Supply 5V STN Blue Yellow-Green LCD Screen Module I2C/IIC 4pin PCB 2004 LCD Screen 16x2 Character LCD Display 20x4 5
